Access Point

NV-AP7

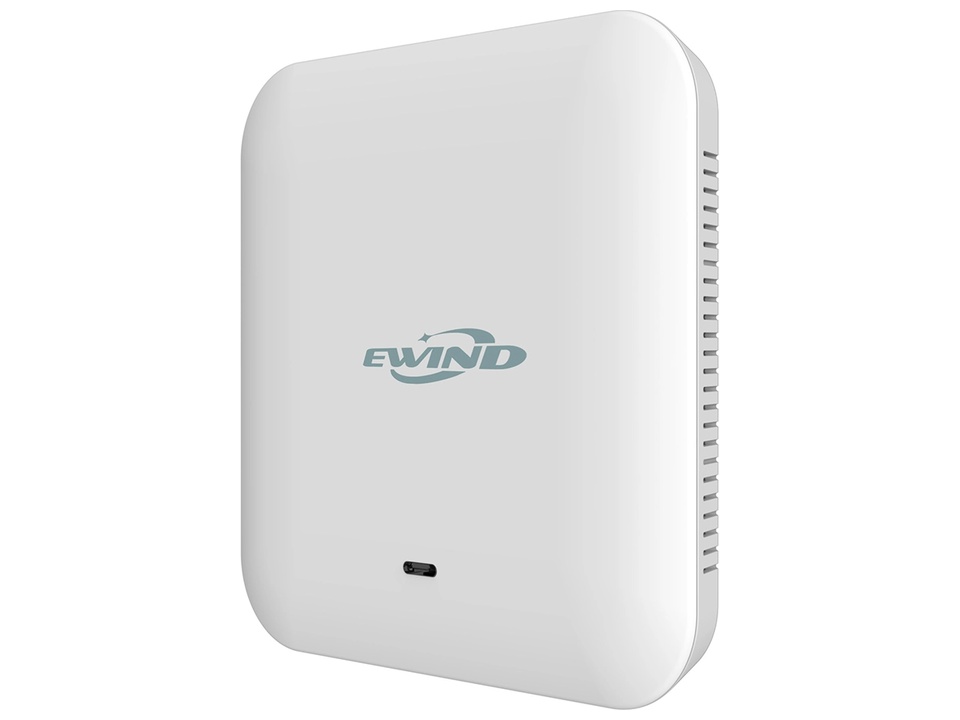

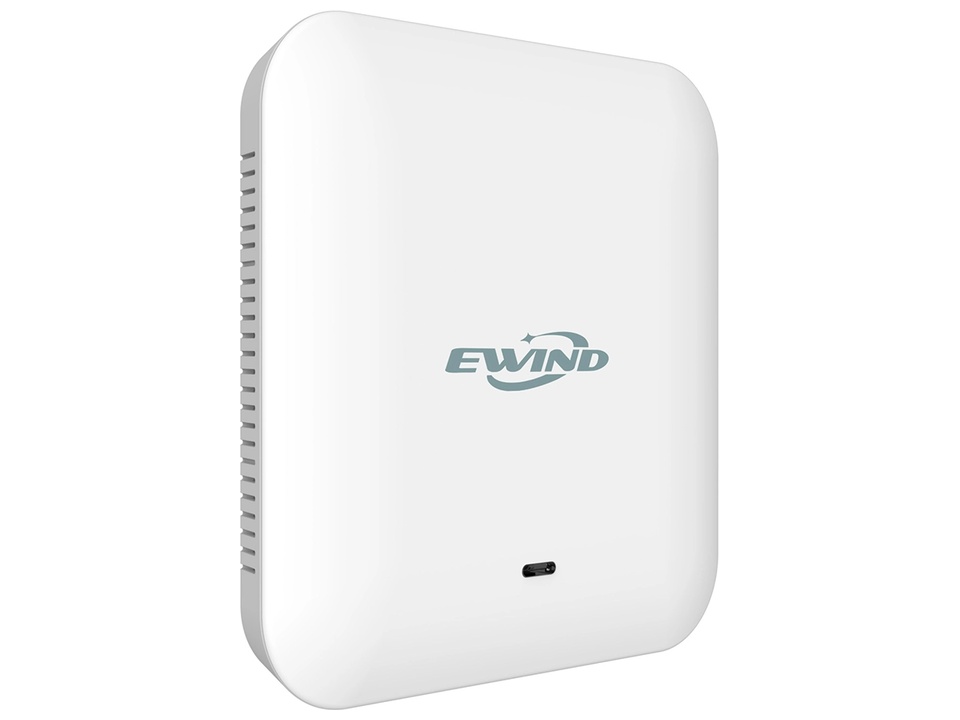

Indoor Wi-Fi 7 Access Point (2.4GHz / 5GHz) – NV-AP7 Key Features: • The latest Wi-Fi 7 (802.11be) standard with a combined throughput of up to 3600 Mbps. • Support for advanced MLO (Multi-Link Operation) technology and 4096-QAM modulation. • Ultra-efficient network interface: 2.5 Gigabit WAN Port and 1 Gigabit LAN Port. • Powerful hardware foundation (512MB RAM DDR4, Qualcomm chipset) supporting up to 128 simultaneous users. The NV-AP7 is an uncompromising ceiling-mount access point designed for the most demanding business environments. Utilizing the revolutionary Wi-Fi 7 standard, the device guarantees gigabit data transfer speeds without delays, making it an ideal solution for modern offices, hotels, schools, and conference centers. Thanks to Multi-Link Operation (MLO) technology and 4096-QAM modulation, the unit offers unprecedented connection stability even in highly congested areas. Equipped with a 2.5G WAN port and flexible power options (including PoE+ 802.3at), the access point seamlessly integrates with modern network infrastructure, offering full AC controller management and reliable operation under the highest loads.

Key Features

Wi-Fi Wi-Fi 7 (802.11be)

PoE Port 1x 1Gbps (PoE-in)

PoE Standard 802.3at (PoE+)

Bandwidth 5400 Mbps

Management Cloud Managed

Power Supply 12V DC / PoE+

Power Consumption < 20W

Features MLO, 4K-QAM, MU-MIMO

Chipset IPQ5312 + QCN6422 + QCA8081 + QCA8337

RAM 512MB DDR4

Flash 128MB NAND

Enclosure Indoor Ceiling

Technical Specifications

Model

NV-AP7

Hardware Configuration

Main Chip

IPQ5312+QCN6422+QCA8081+QCA8337

Memory

512MB DDR4

Flash

Nand 128MB

2.4G Frequency

2.4GHz~2.484GHz

5G Frequency

5.150GHz~5.825GHz

Wireless Technology

2.4GHz Band: IEEE 802.11 b/g/n/ax/be, theoretical maximum data rate up to 688Mbps
5GHz Band: IEEE 802.11 a/n/ac/ax/be, theoretical maximum data rate up to 2882Mbps

Dual Band Antenna

2.4GHz: 2x4dBi
5GHz: 2x4dBi

2.4G TX Power

Standard	Data Rate / MCS	Typical TX Power	Data Rate / MCS	Minimum TX Power
802.11b	11M	24±2dBm	1M	24±2dBm
802.11g	54M	23±2dBm	6M	24±2dBm
802.11n HT20	MCS7	22±2dBm	MCS0	24±2dBm
802.11n HT40	MCS7	22±2dBm	MCS0	24±2dBm
802.11ax HE20	MCS11	20±2dBm	MCS0	24±2dBm
802.11ax HE40	MCS11	20±2dBm	MCS0	24±2dBm
802.11be EHT20	MCS13	20±2dBm	MCS0	24±2dBm
802.11be EHT40	MCS13	20±2dBm	MCS0	24±2dBm

5G TX Power

Standard	Data Rate / MCS	Typical TX Power	Data Rate / MCS	Minimum TX Power
802.11a	54M	21±2dBm	6M	23±2dBm
802.11n HT20	MCS7	20±2dBm	MCS0	23±2dBm
802.11n HT40	MCS7	20±2dBm	MCS0	23±2dBm
802.11ac VHT20	MCS7	19±2dBm	MCS0	23±2dBm
802.11ac VHT40	MCS7	19±2dBm	MCS0	23±2dBm
802.11ac VHT80	MCS9	19±2dBm	MCS0	23±2dBm
802.11ax HE20	MCS11	18±2dBm	MCS0	23±2dBm
802.11ax HE40	MCS11	18±2dBm	MCS0	23±2dBm
802.11ax HE80	MCS11	18±2dBm	MCS0	23±2dBm
802.11ax HE160	MCS11	18±2dBm	MCS0	23±2dBm
802.11be EHT20	MCS13	18±2dBm	MCS0	23±2dBm
802.11be EHT40	MCS13	18±2dBm	MCS0	23±2dBm
802.11be EHT80	MCS13	18±2dBm	MCS0	23±2dBm
802.11be EHT160	MCS13	18±2dBm	MCS0	23±2dBm
802.11be EHT240	MCS13	18±2dBm	MCS0	23±2dBm

2.4G Receiving Sensitivity

Standard	Data Rate / MCS	Typical RX Power	Data Rate / MCS	Minimum RX Power
802.11b	11M	-89dBm	1M	-95dBm
802.11g	54M	-75dBm	6M	-92dBm
802.11n HT20	MCS7	-72dBm	MCS0	-88dBm
802.11n HT40	MCS7	-70dBm	MCS0	-86dBm
802.11ax HE20	MCS11	-62dBm	MCS0	-88dBm
802.11ax HE40	MCS11	-60dBm	MCS0	-86dBm
802.11be EHT20	MCS13	-60dBm	MCS0	-86dBm
802.11be EHT40	MCS13	-60dBm	MCS0	-86dBm

5G Receiving Sensitivity

Standard	Data Rate / MCS	Typical RX Power	Data Rate / MCS	Minimum RX Power
802.11a	54M	-75dBm	6M	-92dBm
802.11n HT20	MCS7	-72dBm	MCS0	-88dBm
802.11n HT40	MCS7	-70dBm	MCS0	-86dBm
802.11ac VHT20	MCS7	-65dBm	MCS0	-88dBm
802.11ac VHT40	MCS7	-62dBm	MCS0	-86dBm
802.11ac VHT80	MCS9	-60dBm	MCS0	-84dBm
802.11ax HE20	MCS11	-60dBm	MCS0	-90dBm
802.11ax HE40	MCS11	-58dBm	MCS0	-88dBm
802.11ax HE80	MCS11	-54dBm	MCS0	-84dBm
802.11ax HE160	MCS11	-54dBm	MCS0	-82dBm
802.11be EHT20	MCS13	-54dBm	MCS0	-86dBm
802.11be EHT40	MCS13	-52dBm	MCS0	-84dBm
802.11be EHT80	MCS13	-50dBm	MCS0	-82dBm
802.11be EHT160	MCS13	-48dBm	MCS0	-80dBm
802.11be EHT240	MCS13	-48dBm	MCS0	-80dBm

2.4G EVM

802.11b: -10 dB; 802.11g: ≤-25 dB; 802.11n: ≤-28dB; 802.11ax: ≤-35 dB; 802.11be: ≤-38 dB

5G EVM

802.11a: ≤-25 dB; 802.11n: ≤-28 dB; 802.11ac: ≤-32 dB; 802.11ax: ≤-35 dB; 802.11be: ≤-38 dB

ppm

±20ppm

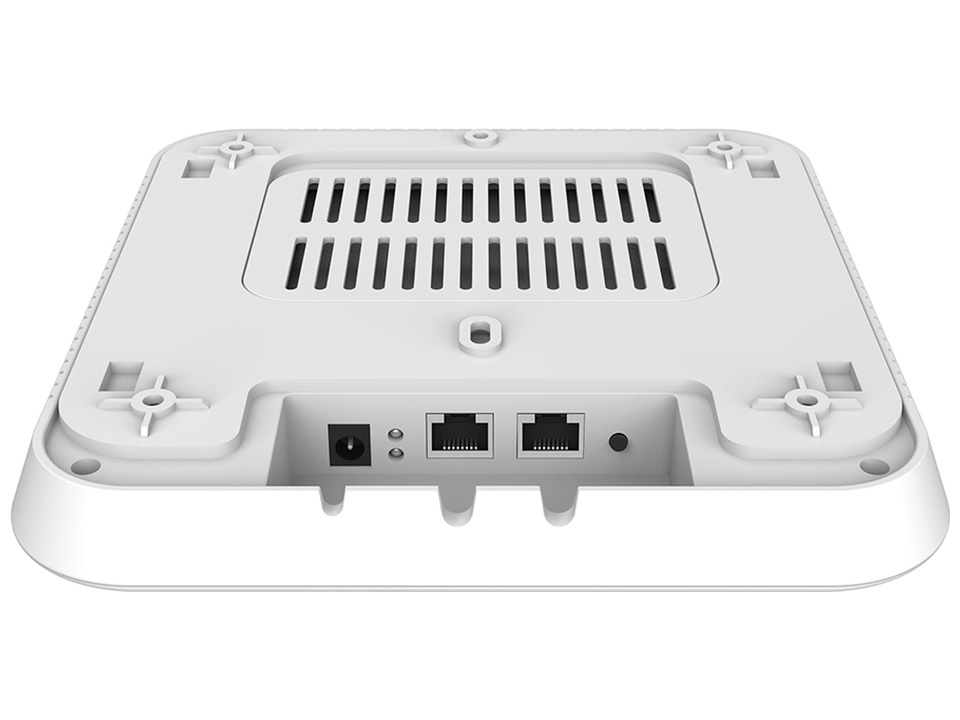

WAN Interface

1*10/100/1000/2500Mbps, support 48V POE

LAN Interface

1*10/100/1000Mbps

Indicators

Front Panel-Red/Green/Blue:
Power On: Red ON → System Start → Green ON & Red OFF → Wi-Fi Active
Thin AP-AC disconnected: Red ON & Green OFF & Blue ON
AP Locator: Blue Flashes (1 time/second), Red & Green OFF

One-Key Reset

Press & Hold 6-10s Factory Reset

Power

POE 802.3at / DC12V2A

Max Power Consumption

<24W

Weight

1.6kg

Operating/Storage Temperature

-20°C~55°C / -40°C~70°C

Operating/Storage Humidity

10%~90%(non-condensing) / 5%~95%(non-condensing)

Dimensions

304mm × 181mm × 88mm

ESD

Air +/-8K, Contact +/-6K

Surge protection

line to ground 2K, line to line 1K

Certification

CCC; CE mark, commercial; CE/LVD EN60950; FCC Part 15 Class B; RoHS

WiFi Specification

Working Mode

Gateway Mode: The device connects to the WAN port and accesses the Internet via static IP, DHCP, or PPPoE.
Repeater Mode: In this mode, the device extends an existing wireless network to other clients or devices. It can also connect via Ethernet to another router to access the WAN.
AP Mode: The device provides wireless coverage for clients and devices, connecting via Ethernet to a router to access the WAN.

Wireless Functions

Multiple SSID functions: 2.4GHz: 4; 5.8GHz: 4.
Support Watchdog/Reboot Scheduling
Support SSID hidden
Support seamless roaming
Support 5G Prior for a faster Ethernet.
Support unicode characters supported
Wireless Security: Open, WPA, WPA2PSK_TKIPAES, WAP2_EAP, WPA3
Support MAC filter
Support Wi-Fi time on/off to save energy
Support client isolation to improve the wireless stability
Support RF power adjustable, adjust the RF power based on environment.

Networking Function

VLAN settings
Support gateway mode

Device Management

Back-up the configuration
Restore the configuration
Reset to factory default
Reboot the device: including time reboot or reboot immediately

Software Functions

Capacity

128 Users Maximum

Management mode

English/Chinese WEB remote management

Status

System/Wireless/Real-time traffic

Network

DHCP/Static IP/PPPOE

Wireless

Wireless switch, SSID, encryption, Password, Wireless multimedia, Isolation, Hidden

System

Device name, system upgrade, configuration restore, backup configuration, factory reset, reboot device.
