Managed Ethernent Switch
NV-SWM2824G-4X

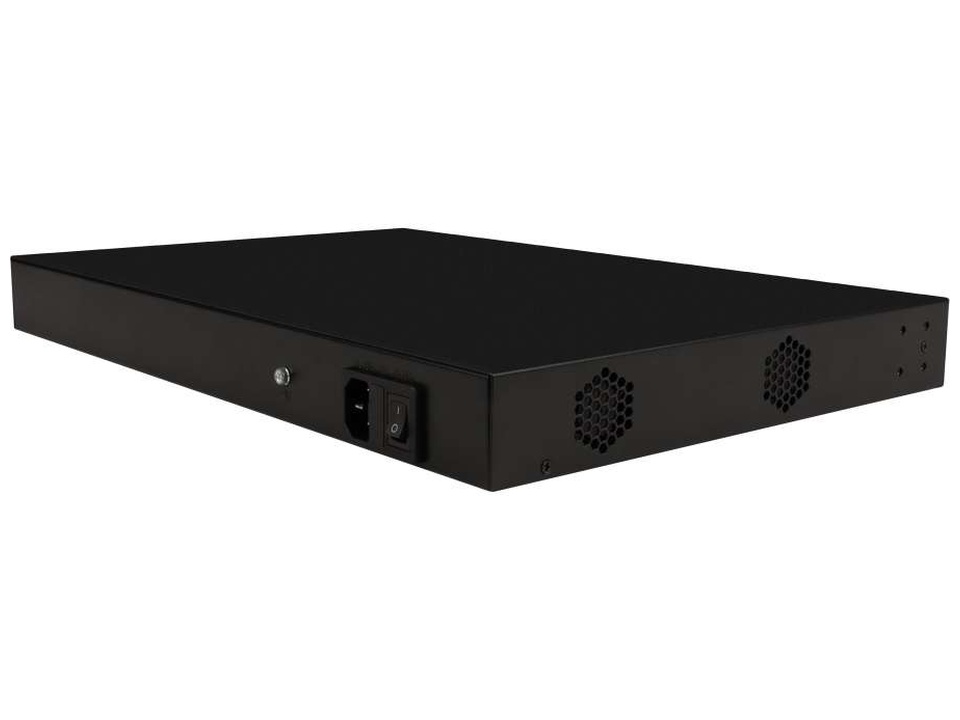

Managed L3 Core Switch (24x RJ45 Gigabit + 4x SFP+ 10G) – NV-SWM2824G-4X Key Features: • Direct support for advanced packet pathing and routing within the Layer 3 (L3) standard. • 4 dedicated SFP+ slots built for massive loads over 10-Gigabit optical bands. • 24 hardware Gigabit inputs (pure RJ45 without PoE) for interconnecting smaller, dedicated subnets. • A formidable, almost extreme backplane throughput: an impressive 598 Gbps. • "Security First" architecture: rich IPv4/IPv6 support environment, STP/RSTP/MSTP redundancy protocols, and a dedicated engineering console port (CLI management). Behold the true command center of any corporate digital logistics operation. The NV-SWM2824G-4X model is an professional "Core/Convergence" switch designed to serve as the intelligent brain of your IT infrastructure. Its architecture allows for full, advanced L3 management—meaning the device autonomously routes paths across internal subnets, radically offloading the main enterprise edge router and massively improving overall connection responsiveness. Armed with four sockets for 10-Gigabit SFP+ optical transceivers, it instantaneously transmits sensitive, terabyte-level data volumes, forging an uncompromising backbone for any enterprise, regardless of its scale.
Key Features
RJ45 Uplink Port
24x 1Gbps
SFP / SFP+ Port
4x 10G SFP+
Bandwidth
598 Gbps
Management
Managed (L3)
Power Supply
100-240V AC
Power Consumption
< 25W
Features
L3 Routing, OSPF, VRRP, IPv6
Enclosure
1U Rackmount
Technical Specifications
| Model | NV-SWM2824G-4X |
| Interface | 24*10/100/1000Base-T/TX RJ45 ports (Data) 4*1/2.5/10G uplink SFP+ fiber slot ports (Data) 1*Console RS232 port (115200, N, 8, 1) |
| Managed Type | L3 |
| Network Protocol | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-X IEEE802.3ae 10GBase-SR/LR IEEE802.3x |
| Ethernet Port Feature | Port 1-24 can support 10/100/1000Base-T(X) auto detect, full/half duplex MDI/MDI-X adaptive |
| Fiber Port Feature | 1/2.5/10G SFP+ fiber interface (Fiber module is not included, need to order separately, module options include single/multi-mode, single/dual fiber, LC) |
| Forwarding Mode | Store and Forward |
| Switching Capacity | 598Gbps (non-blocking) |
| Forwarding Rate | 107.14Mpps |
| MAC | 32K |
| Buffer Memory | 32M |
| Twisted Pair Transmission | 10BASE-T: Cat3, 4, 5 UTP (≤100 meter); 100BASE-TX: Cat5 or later UTP (≤100 meter) 1000BASE-T: Cat5e or later UTP (≤100 meter) |
| Optical Fiber Cable | Multi-mode: 850nm 0~300M(10G), 850nm 0~500M(1.25G); Single-mode: 1310nm 0~40KM, 1550nm 0~120KM. |
| Power Supply | Built-in power supply, AC 100~220V 50-60Hz 5A |
| LED Indicator | Power indicator: PWR (Green); Network indicator: 1-28port 100M-(Link/Act)/ (Orange), 1G/2.5G/10G-(Link/Act)/ (Green); POE indicator: PoE (Green) SYS: (Green) |
| Reset Switch | Yes, One-button factory reset |
| Operation TEMP/Humidity | -20~+55°C; 5%~90% RH Non condensing |
| Storage TEMP/Humidity | -40~+80°C; 5%~95% RH Non condensing |
| Protection | IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-5(Lightning protection/Surge): Power:CM±4kV/DM±2kV; Port: ±4kV |
| Protection Level | IP30 |
| Dimension (L*W*H) | 440 * 290 * 44.5 mm |
| Net/Gross Weight | <4.4kg / <5.0kg |
| Installation | Desktop, 19-inch 1U cabinet |
| Lightning protection / protection level | Lightning protection: 4KV 8/20us; Protection level: IP30 |
| Certification | CCC, CE mark, commercial; CE/LVD EN60950; FCC Part 15 Class B; RoHS |
| Warranty | 3 years, lifelong maintenance. |
| Managed Series Feature | |
| Interface | IEEE802.3x flow control (full duplex) Broadcast storm suppression for port rate Support speed limit for incoming and offline message traffic, with a minimum particle size of 64Kbps. Temperature protection setting Energy saving configuration of port EEE Ethernet |
| Layer3 Function | L3 network management function, IPV4/IPV6 management support layer3 of software line speed forwarding. Support different network segments, communication between different VLAN Static routing/default routing, 128 maximum entries ARP protocol, 1024 maximum entries Support Mac filtering function. |
| VLAN | Support port based VLAN (4K), IEEE802.1q Support protocol based VLAN Support Access, Trunk, Hybrid three types of port configuration Support QinQ configuration |
| Port Aggregation | Support LACP Support static aggregation Support the largest 8 aggregation groups, each aggregation group supports 8 ports. |
| Spanning Tree | STP (IEEE802.1d) RSTP (IEEE802.1w) MSTP (IEEE802.1s) |
| Industrial Ring Network Protocol | Support G.8032 (ERPS), support 255 loops at most, and supports 1024 devices per ring. The self healing time of the ring network is less than 20ms |
| Multicast | Support IGMP Snooping V1/V2 and support 1024 multicast groups at most. Support the user's quick departure mechanism Support MLD Snooping V1/V2 Support multicast VLAN |
| Port Mirroring | Bi-directional traffic mirroring supporting the basic port |
| QoS | Diff-Serv QoS Each port supports 8 output queues Support 802.1p/DSCP priority mapping Support queue scheduling mechanism (SP, WRR, SP+WRR) Priority tag Mark/Remark Stream based packet filtering Support for stream based redirection Support flow based speed limit |
| ACL | Support L2 to L4 packet filtering function, can match the first 80 bytes of the message, provide based on the source MAC address, destination MAC address, source IP address, destination IP address, IP protocol type, TCP/UDP port, TCP/UDP port range, VLAN and other definition ACL. Support ACL based on port and VLAN |
| Safety Characteristics | Support user grading management and password protection Support IEEE802.1X authentication / centralized MAC address authentication Support AAA & RADIUS authentication Support the number of MAC address learning restrictions Support MAC address black hole Support SSH 2 to provide secure passwords for user login. Support SSL to ensure data transmission security Support port isolation Support the speed limit function of ARP message Support IP source address protection Support ARP intrusion detection function Support against DoS attacks Support port broadcast message suppression Support host data backup mechanism Binding capabilities of IP+MAC+VLAN+ ports |
| DHCP | Support DHCP Client Support DHCP Snooping Support DHCP Server Support DHCP Relay |
| Management And Maintenance | Support Console/AUX Modem/Telnet/SSH2.0 CLI command line configuration Support WEB network management (HTTPS) Support FTP, TFTP, Xmodem, SFTP file download management Support SNMP V1/V2C/V3 Support one bond reduction Support NTP clock Support system work log Support Ping detection Support cable state detection Support CPU instant utilization status view Support link layer discovery protocol LLDP Support NMS intelligent management center |
| System Requirements | Web browser: Mozilla Firefox 2.5 or higher, Google browser chrome V42 or higher, Microsoft Internet Explorer 10 or later; Cat5e or later Ethernet cable; TCP/IP, network adapter and network operating system (Microsoft Windows, Linux or Mac OS X) installed on every computer in the network. |
