PoE Switch
NV-SHP108P
Unmanaged PoE Switch (6x PoE 100M + 2x High-PoE 60W + 2x Uplink 100M) – NV-SHP108P Key Features: • 8 PoE power delivery ports (10/100 Mbps) + 2 Uplink communication ports (10/100 Mbps). • Ports 7 and 8 support the enhanced High-PoE 802.3bt standard (up to 60W per port). • Integrated proprietary hardware functions: hardware port isolator (VLAN), AI Extend, and Watchdog. • Elegant metal chassis and a built-in internal AC power supply (no bulky external power bricks). Designed to power and optimize medium-sized surveillance topologies, the NV-SHP108P switch delivers flawless power and data across eight access ports. It is the ideal foundation for distributed systems—allowing you to collect footage from 8 different zones, while the dual Uplink interface flexibly forwards the aggregated data to both a router and an NVR independently. The key differentiator of this model is its support for extremely demanding Hi-PoE modules (on ports 7 and 8). This means you can install power-hungry industrial PTZ cameras without the need for dedicated midspan injectors, ensuring zero loss in video quality.
Key Features
PoE Port
8x 100Mbps (PoE)
PoE Standard
802.3af/at
PoE Budget
120W
RJ45 Uplink Port
2x 100Mbps
Bandwidth
2.0 Gbps
Management
Unmanaged
Power Supply
100-240V AC
Power Consumption
< 5W (bez PoE)
Features
VLAN, AI-PoE, Extend 300m
Enclosure
Desktop
Technical Specifications
| Model | NV-SHP108P |
| Fixed Port | 8*10/100Base-T/TX POE ports (Data/Power) 2*10/100Base-T/TX Uplink RJ45 ports (Data) |
| POE Port | Port 1-8 support PoE |
| Feature | With the Dial code switch, support port priority by default. E: AI Extend 300meters transmission and auto speed change of single port (limit 10Mbps), other ports maintain 100M/1000M within 100 meters; V: Turn on, 1-8 Port support each port Isolation & VLAN; D: Turn on, 1-8 Port support AI-PoE Network self-healing mode (PoE Watchdog function), Automatic solve the camera problem & reduce after-sale. |
| Network Protocol | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3x. |
| Ethernet Port Feature | 10/100Base-T(X) automatic detection, full/half Duplex MDI/MDI-X adaptive |
| Fiber Port Feature | Store and Forward |
| Switching Capacity | 2.0Gbps |
| Forwarding Mode | 1.488Mpps |
| MAC | 4K |
| Buffer Memory | 1.25M |
| Twisted Pair Transmission | 10BASE-T: Cat5 UTP(≤300 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) |
| Power Supply Pin | Default 1/2(+), 3/6(-) |
| MAX / AVERAGE Power Per Port | Port 1-6 30W/15.4W, Port 7-8 60W/15.4W |
| Total PWR/Input Voltage | 120W |
| Power Consumption | Standby: <4W; Full load: <120W |
| LED Indicator | Power indicator: PWR (Green); Network indicator: 1-8(Link/Act)/ (Green), 9-10(Link/Act)/ (Green) |

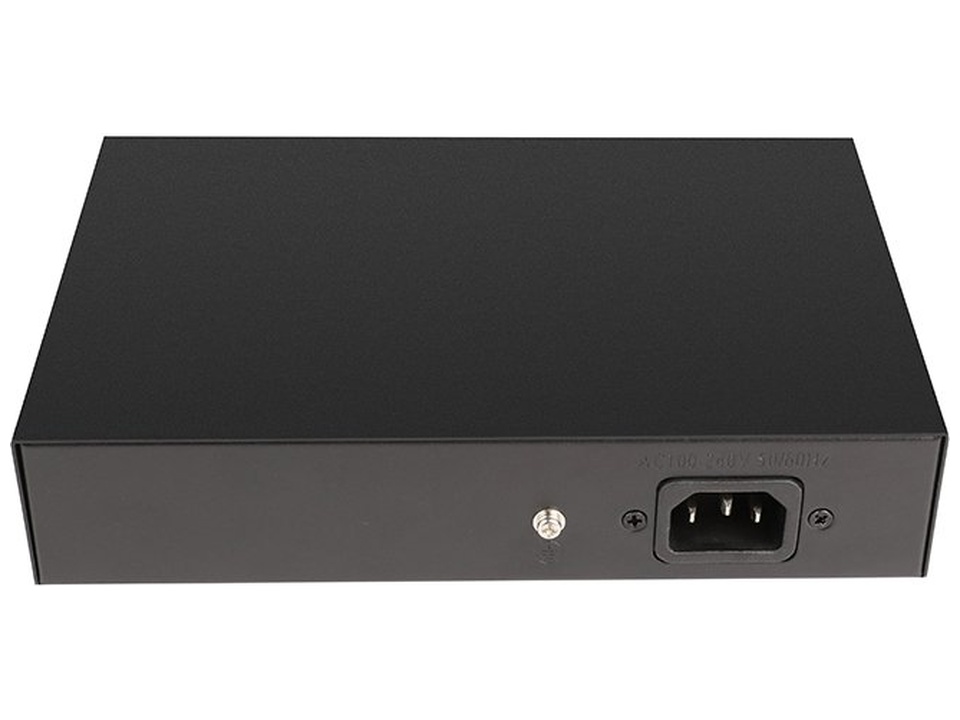

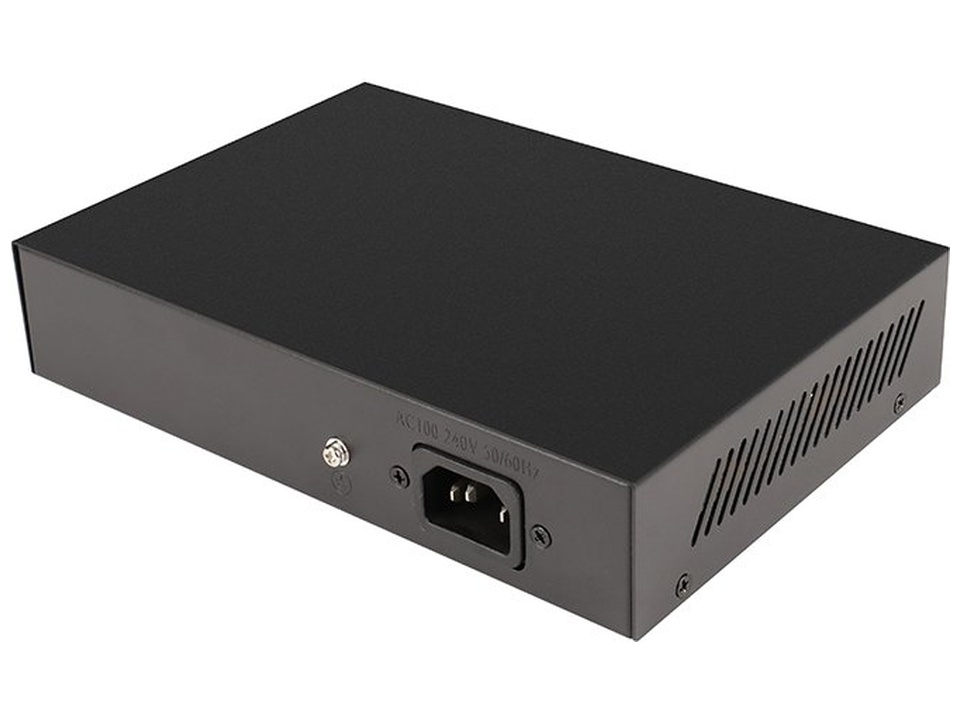

| Power Supply | Build-in power adaptor AC100~240V 50-60Hz, 120W |
| Operation TEMP / Humidity | -20~+55°C; 5%~90% RH non condensing |
| Storage TEMP / Humidity | -40~+75°C; 5%~95% RH non condensing |
| Dimension | 195 * 130 * 40 mm |
| Net/Gross Weight | <1 kg / <1.2 kg |
| Installation Method | desktop type, wall mounted |
| Protection | IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-5(Lightning protection/Surge): Power:CM±4kV/DM±2kV; Port: ±4kV |
| Protection Level | IP30 |
| Certification | CCC; CE mark, commercial; CE/LVD EN60950; FCC Part 15 Class B; RoHS |
| Warranty | 2 years, lifetime maintenance. |
