PoE Switch
NV-SHP1916P-1S-2GU

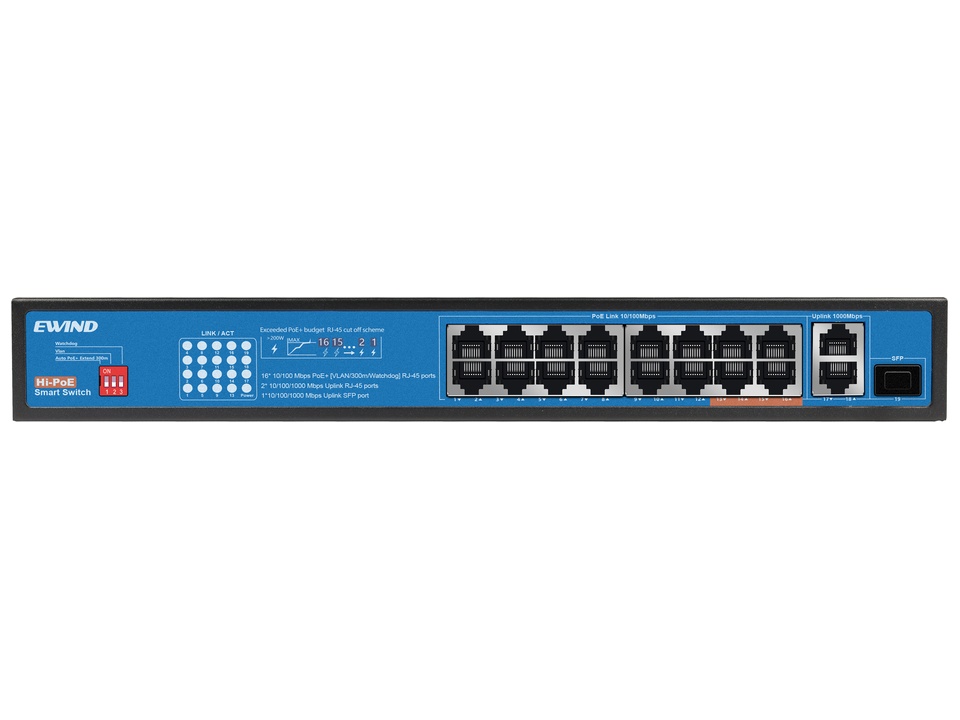

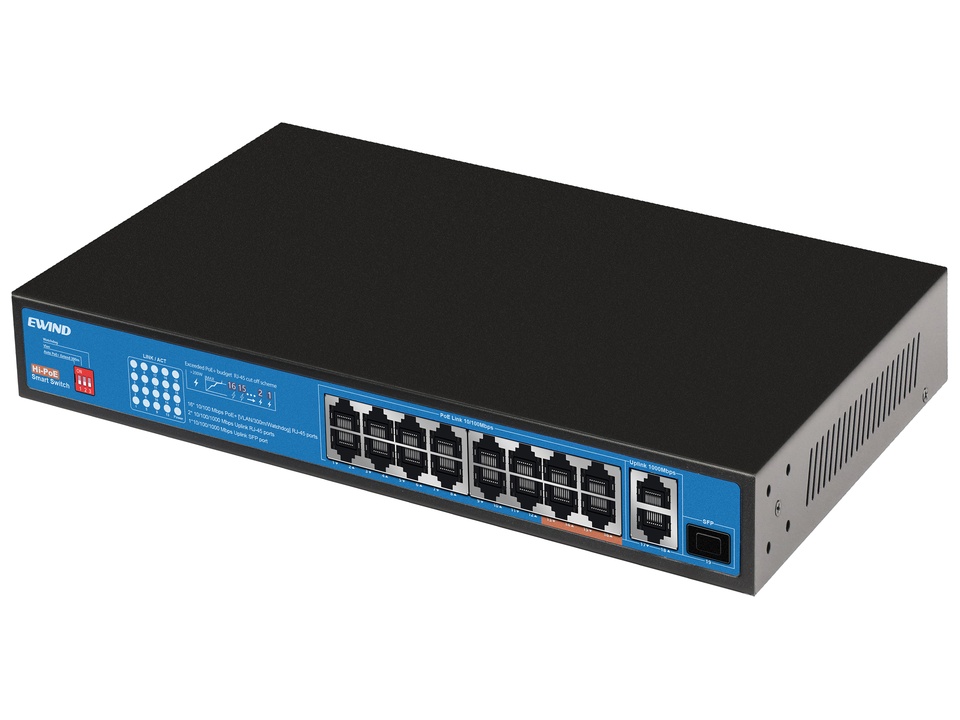

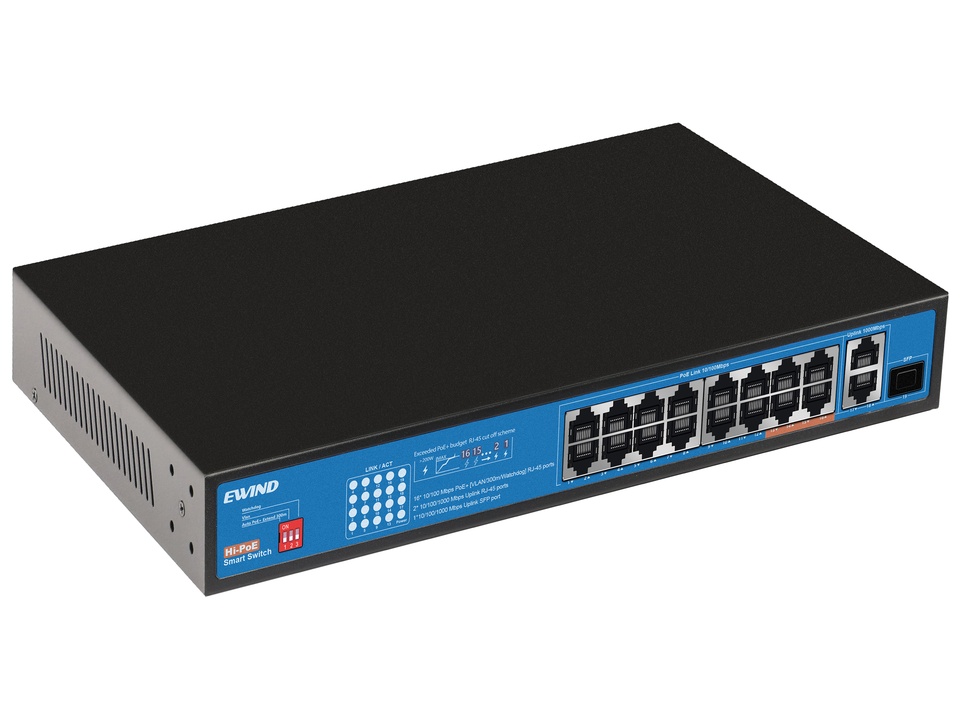

Unmanaged PoE Switch (12x PoE 100M + 4x High-PoE 60W + 2x Uplink Gigabit + 1x SFP Gigabit) – NV-SHP1916P-1S-2GU Key Features: • Highly expanded port matrix: 16x PoE (10/100 Mbps), 2x Gigabit RJ45 Uplink, and 1x Gigabit SFP. • Extreme power budget delivered on ports 13-16: High-PoE certification (up to 60W per port). • Fanless and silent thermal engineering, perfect for shared racks in quiet office environments. • Built-in diagnostic hardware features: automatic reboot (Watchdog), VLAN isolator, and 300m Extend. The NV-SHP1916P-1S-2GU switch was developed specifically to centralize medium and large inter-floor architectures. Boasting sixteen solid PoE ports, this multifunctional switch effortlessly handles advanced security installations while also integrating local office hardware (IP phones and smaller transmitters). What sets it apart from the competition and positions it as a class leader is its versatile output interface: in addition to traditional Gigabit RJ45 inputs, it features a dedicated hardware SFP slot for an optical transceiver. This enables you to create a highly reliable fiber optic bridge connecting remote buildings directly to the main server room.
Key Features
PoE Port
16x 100Mbps (PoE)
PoE Standard
802.3af/at
PoE Budget
250W
RJ45 Uplink Port
2x 1Gbps
SFP / SFP+ Port
1x 1Gbps SFP
Bandwidth
9.2 Gbps
Management
Unmanaged
Power Supply
100-240V AC
Power Consumption
< 10W (bez PoE)
Features
VLAN, AI-PoE, Extend 300m
Enclosure
1U Rackmount
Technical Specifications
| Model | NV-SHP1916P-1S-2GU |
| Fixed Port | 16*10/100Base-T/TX POE ports (Data/Power) 2*10/100/1000Base-T/TX RJ45 ports (Data) 1*100/1000Base-X uplink SFP fiber slot (Data) |
| POE Port | Port 1-16 support PoE @ IEEE802.3af/at |
| Feature | With the Dial code switch, support port priority by default. E: AI Extend 300meters transmission and auto speed change of single port (limit 10Mbps), other ports maintain 100M/1000M within 100 meters; V: Turn on, 1-4 Port support each port Isolation & VLAN; D: Turn on, 1-4 Port support AI-PoE Network self-healing mode (PoE Watchdog function), Automatic solve the camera problem & reduce after-sale. |
| Fan | Non-Fan, silent working status can satisfy more users with different requirement. |
| Network Protocol | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000base-X; IEEE802.3x. |
| POE Standard | IEEE802.3af/at |
| Ethernet Port Feature | 10/100/1000Base-T(X) automatic detection, full/half Duplex MDI/MDI-X adaptive |
| Fiber Port Feature | Gigabit SFP Port (Fiber module is not included, need to order separately, module options include single/multi-mode, single/dual fiber, LC) |
| Forwarding Mode | Store and Forward |
| Switching Capacity | 9.2Gbps (non-blocking) |
| Forwarding Rate | 6.84Mpps |
| MAC | 8K |
| Buffer Memory | 4M |
| Twisted Pair Transmission | 10BASE-T: Cat5 UTP (≤300 meter) 100BASE-TX: Cat5 or later UTP (≤100 meter) 1000BASE-TX: Cat5 or later UTP (≤100 meter) |
| Power Supply Pin | Default 1/2(+), 3/6(-) |
| MAX/AVERAGE Power Per Port | Port 1-12 30W/15.4W, Port 13-16 60W/15.4W |
| Total PWR / Input Voltage | 250W |
| Power Consumption | Standby: <5W; Full load: <250W |
| LED Indicator | Power indicator: PWR (Green); Network indicator: 1-16(Link/Act)/ (Green), 17-19(Link/Act)/ (Green) |

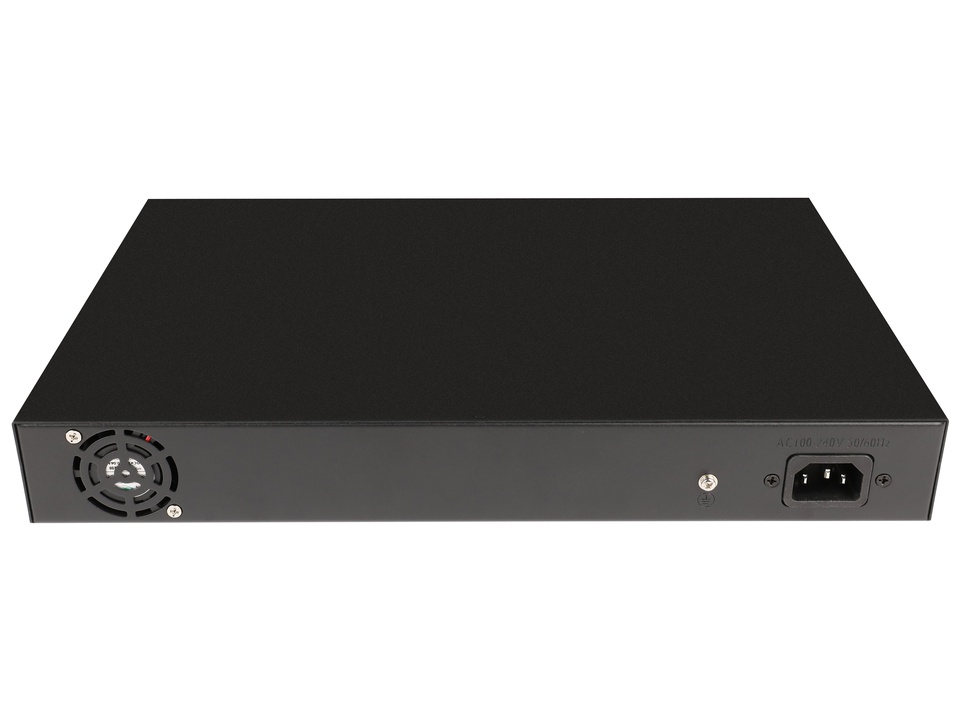

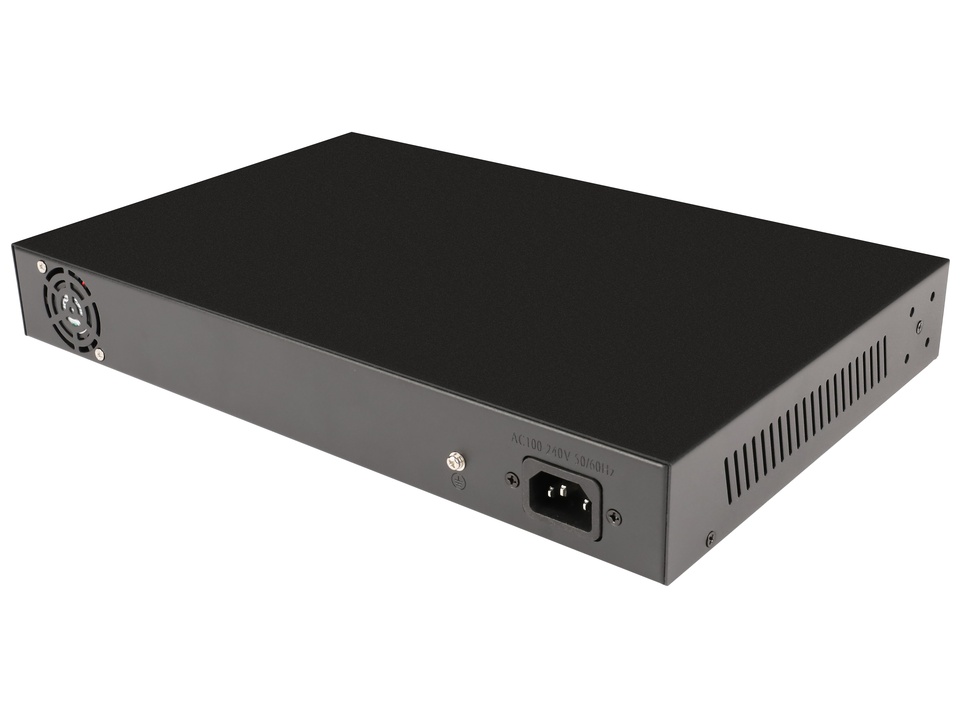

| Power Supply | Build-in power adaptor AC100~240V 50-60Hz, 250W |
| Operation TEMP / Humidity | -20~+55°C; 5%~90% RH non condensing |
| Storage TEMP / Humidity | -40~+75°C; 5%~95% RH non condensing |
| Dimension | 310 * 205 * 44 mm |
| Net/Gross Weight | <3 kg / <4 kg |
| Installation Method | desktop type, wall mounted, 19-inch 1U cabinet installation |
| Protection | IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-5(Lightning protection/Surge): Power: CM±4kV/DM±2kV; Port: ±4kV |
| Protection Level | IP30 |
| Certification | CCC; CE mark, commercial; CE/LVD EN60950; FCC Part 15 Class B; ROHS |
| Warranty | 2 years, lifetime maintenance. |
