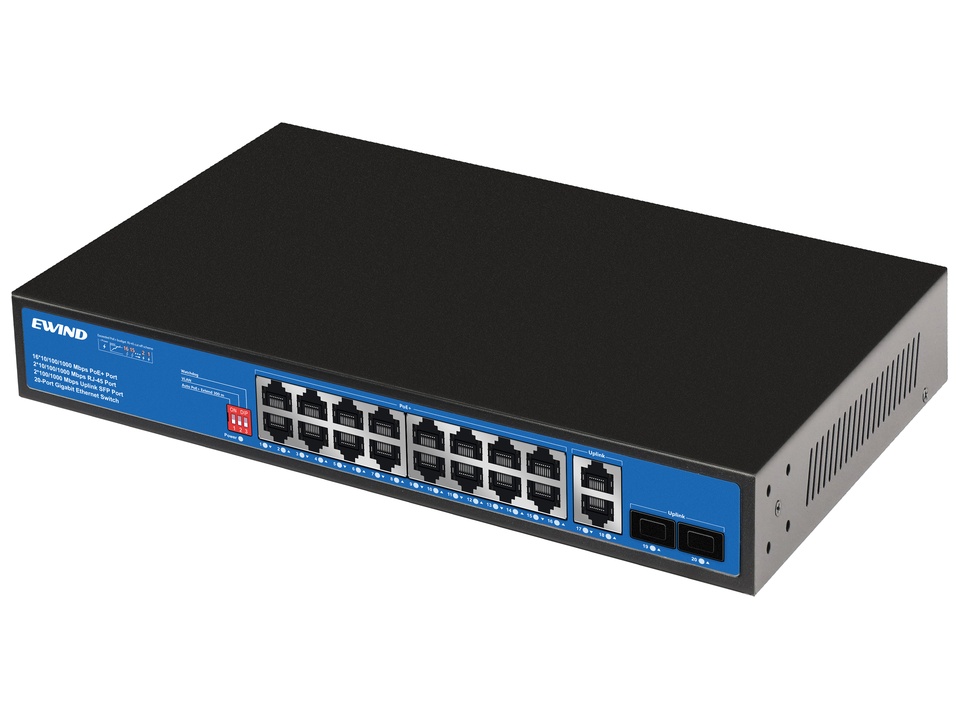

PoE Switch
NV-SHP2016PG-2S-2GU
Unmanaged Gigabit PoE Switch (16x PoE Gigabit + 2x Uplink Gigabit + 2x SFP Gigabit) – NV-SHP2016PG-2S-2GU Key Features: • True corporate bandwidth – all 20 ports offer maximum Gigabit speed. • Port architecture: 16x Gigabit PoE (af/at), 2x Gigabit RJ45 (Uplink), 2x Gigabit SFP fiber optic slots. • Powerful and advanced motherboard delivering sensational switching capacity at 40 Gbps. • Intelligent administrator assistance via hardware toggles (VLAN networking, self-healing Watchdog). Built for installations that reject all compromises. The NV-SHP2016PG-2S-2GU unmanaged multiport switch definitively resolves the problem of slow data flows when constructing expansive networks in cloud-based environments, dense surveillance grids, and latest-generation Wi-Fi clusters. By offering Gigabit Ethernet bandwidth for every single one of its twenty nodes, the device boasts phenomenal and non-blocking matrix performance. Two entirely independent SFP interfaces allow you to elegantly link the switch directly to two distinct fiber optic backbones, which is critical when building redundancy (safety fallbacks) for the most critical areas of your enterprise.
Key Features
PoE Port
16x 1Gbps (PoE)
PoE Standard
802.3af/at
PoE Budget
250W
RJ45 Uplink Port
2x 1Gbps
SFP / SFP+ Port
2x 1Gbps SFP
Bandwidth
40 Gbps
Management
Unmanaged
Power Supply
100-240V AC
Power Consumption
< 10W (bez PoE)
Features
Plug & Play
Enclosure
1U Rackmount
Technical Specifications
| Model | NV-SHP2016PG-2S-2GU |
| PoE Ports | 16*10/100/1000Mbps |
| Uplink Ports | 2*10/100/1000Mbps RJ45 Ports 2*100/1000Mbps SFP Fiber Ports |
| Switching Capacity | 40Gbps |
| Forwarding Rate | 29.76Mpps |
| MAC Address Table | 8K |
| Buffer Memory | 4M |
| Power Supply | 200W (100-240V) |
| Power Consumption | Standby: <5W; Full load: <200W. |

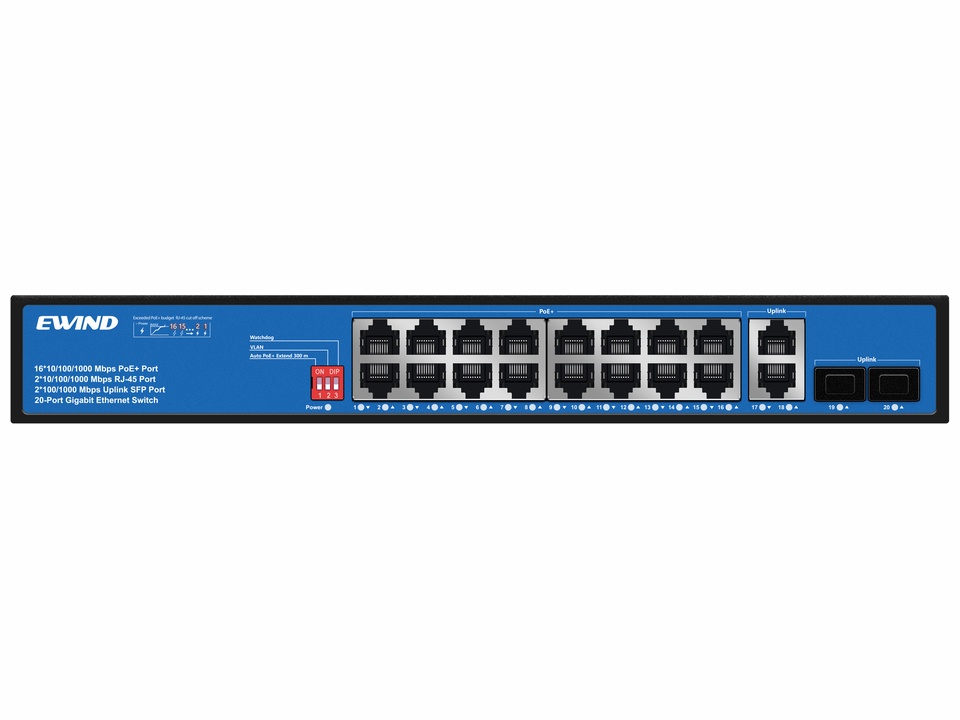

| LED Indicator | Power indicator: PWR (Green); Network indicator: 1-16(Link/Act)/ (Green), 17-20(Link/Act)/ (Green). |
| Dimension | 290 * 181 * 44 mm |
| Net/Gross Weight | <1.6 kg / <2.05 kg |
| PoE standard | All PoE Ports support @IEEE802.3af/at (Max 30W/port). |
| Network Protocol | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3x; IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000base-X; IEEE802.3u 100Base-FX; |
| EVD Function | With the Dial code switch, support port priority by default. E-1: AI Extend 300 meters transmission and auto speed change of single port (limit 10Mbps), other ports maintain 1000M within 100 meters; V-2: Turn on, Each Port support each port Isolation & VLAN; D-3: Turn on Each Port support AI-PoE Network self-healing mode (PoE Watchdog function), Automatic solve the camera problem & reduce after-sale. |
| Ethernet Port Feature | 10/100/1000Base-T(X) automatic detection, full/half Duplex MDI/MDI-X adaptive. |
| Fiber Port Feature | Gigabit SFP Port (Fiber module is not included, need to order separately, module options include single/multi-mode, single/dual fiber, LC) |
| Forwarding Mode | Store and Forward |
| Twisted Pair Transmission | 10BASE-T: Cat5 UTP (≤300 meter) 100BASE-TX: Cat5 or later UTP (≤100 meter) 1000BASE-T: Cat5 or later UTP (≤100 meter) |
| Power Supply Pin | Default 1/2(+), 3/6(-) |

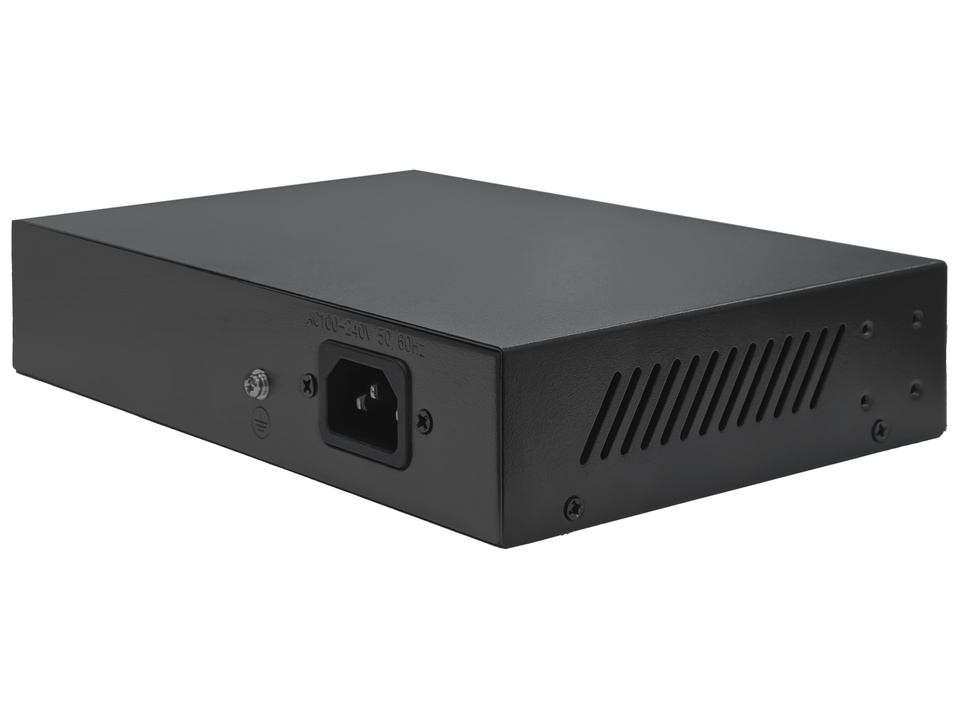

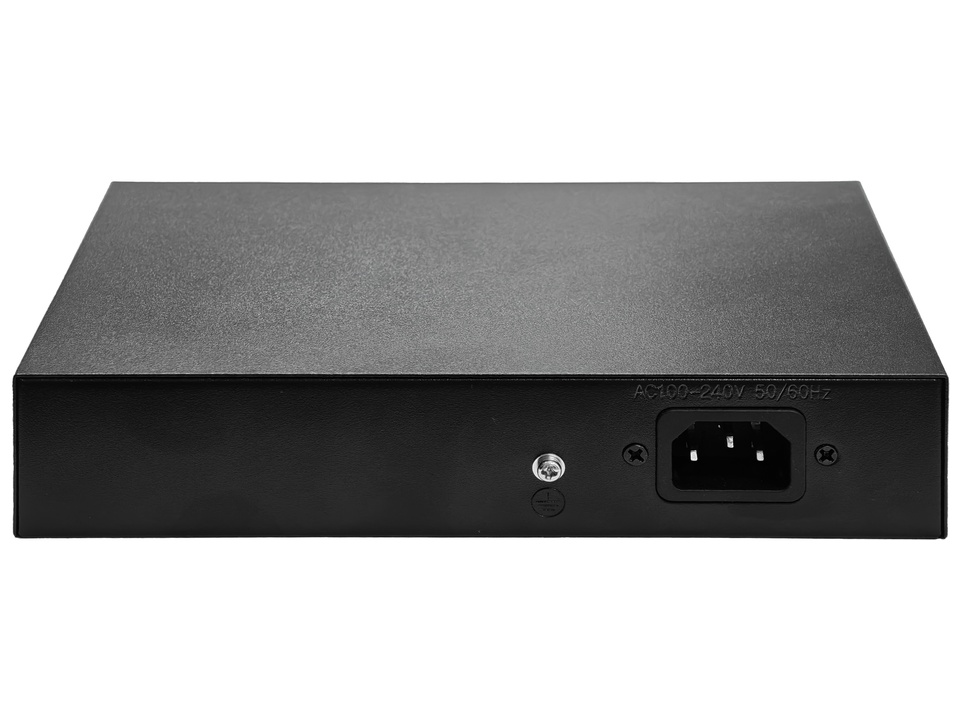

| Power Supply | Build-in power supply AC100-240V 50-60Hz. |
| Operation TEMP / Humidity | -20~+55°C; 5%~90% RH non condensing |
| Storage TEMP / Humidity | -40~+75°C; 5%~95% RH non condensing |
| Installation Method | desktop type, wall mounted; supports 1U Rack Mount. |
| Protection | IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge; IEC61000-4-5(Lightning protection/Surge): Power:CM±4kV/DM±2kV; Port: ±4kV. |
| Protection Level | IP30 |
| Certification | CCC, CE mark, commercial, CE/LVD EN60950; FCC Part 15 Class B RoHS. |
| Warranty | 2 years, lifetime maintenance. |
