PoE Switch
NV-SHP64P

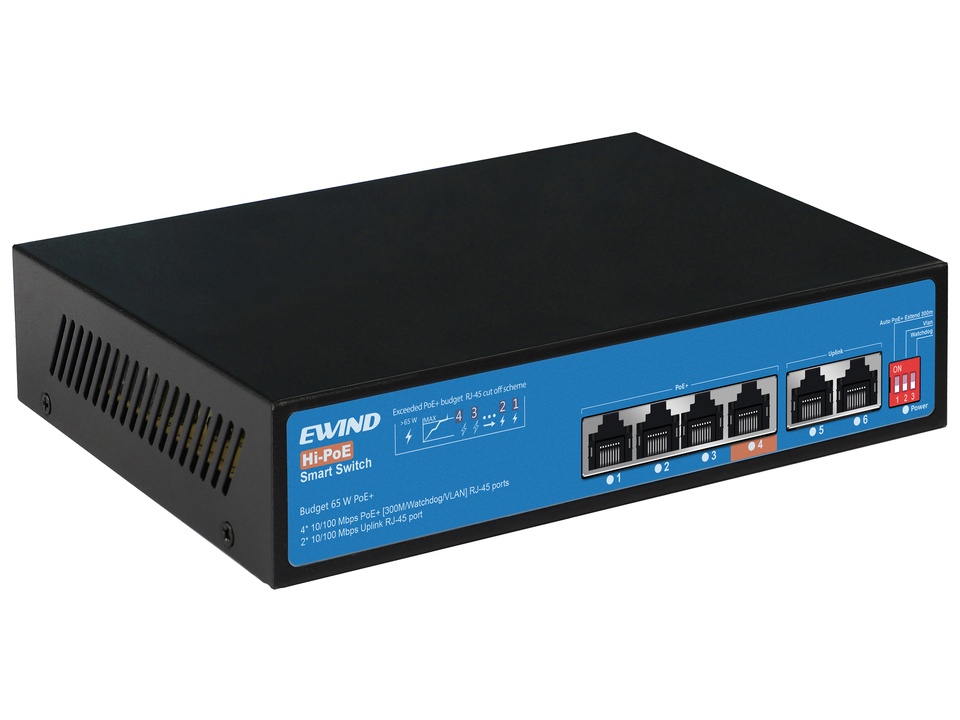

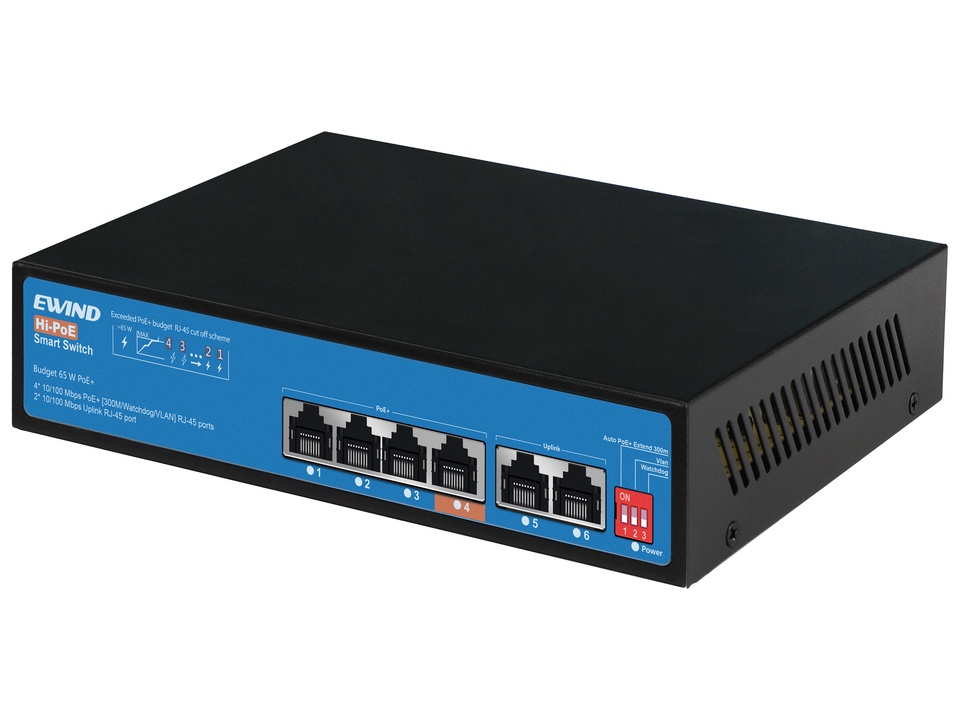

Unmanaged PoE Switch (3x PoE 100M + 1x High-PoE 60W + 2x Uplink 100M) – NV-SHP64P Key Features: • 4 PoE utility ports (10/100 Mbps), including the final port supporting the High-PoE BT (up to 60W) standard. • 2 classic RJ45 Uplink interfaces (10/100 Mbps) for communication with the NVR and core network. • Artificial Intelligence suite: physical toggles for AI Extend (300m range), Port VLAN, and AI Watchdog. • Compact design with an integrated internal power supply. The NV-SHP64P is a hardware classic for security and surveillance installers, enriched with a powerful feature usually found in premium devices: full support for the PoE BT standard (delivering up to 60W of power on port number 4). This configuration enables a single, small switch to power a group of standard IP cameras alongside one large, motorized unit without the fear of sudden voltage drops. With a complete array of physical switches (VLAN preventing network conflicts, Watchdog automating maintenance), this device immediately becomes a maintenance-free transmission node, radically minimizing the cost of on-site service visits.
Key Features
PoE Port
4x 100Mbps (PoE)
PoE Standard
802.3af/at
PoE Budget
65W
RJ45 Uplink Port
2x 100Mbps
Bandwidth
1.2 Gbps
Management
Unmanaged
Power Supply
100-240V AC
Power Consumption
< 3W (bez PoE)
Features
VLAN, AI-PoE, Extend 300m
Enclosure
Desktop
Technical Specifications
| Model | NV-SHP64P |
| Fixed Port | 4*10/100Base-T/TX POE ports (Data/Power) 2*10/100Base/-T/TX Uplink RJ45 ports (Data) |
| POE Port | Port 1-4 support PoE |
| Feature | With the Dial code switch, support port priority by default. E: Al Extend 300meters transmission and auto speed change of single port (limit 10Mbps), other ports maintain 100M/1000M within 100 meters; V: Turn on, 1-4 Port support each port Isolation & VLAN; D: Turn on, 1-4 Port support Al-PoE Network self-healing mode (PoE Watchdog function), Automatic solve the camera problem &reduce after-sale. |
| Network Protocol | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3x. |
| Ethernet Port Feature | 10/100Base-T(X) automatic detection, full/half Duplex MDI/MDI-X adaptive |
| Fiber Port Feature | Store and Forwards |
| Switching Capacity | 1.2Gbps |
| Forwarding Mode | 0.89Mpps |
| MAC | 2K |
| Buffer Memory | 768K |
| Twisted Pair Transmission | 10BASE-T:Cat5 UTP(≤300 meter) 100BASE-TX:Cat5 or later UTP(≤100 meter) |
| Power Supply Pin | Default $1/2(+),$ $3/6(-)$; |
| MAX/AVERAGE Power Per Port | Port 1-3 30W/15.4W, Port 4 60W/15.4W |
| Total PWR/Input Voltage | 65W (52VAC) |
| Power Consumption | Standby: <2W;Full load:<65W |

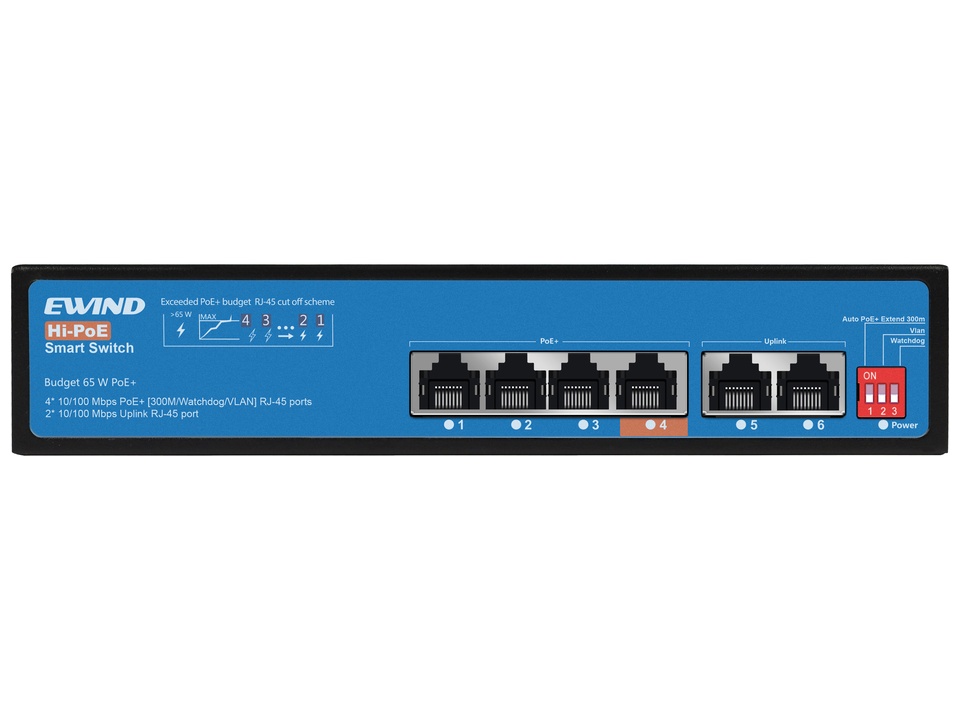

| LED Indicator | Power indicator: PWR (Green); Network indicator: 1-4(Link/Act)/ (Green), 5-6(Link/Act)/ (Green), |

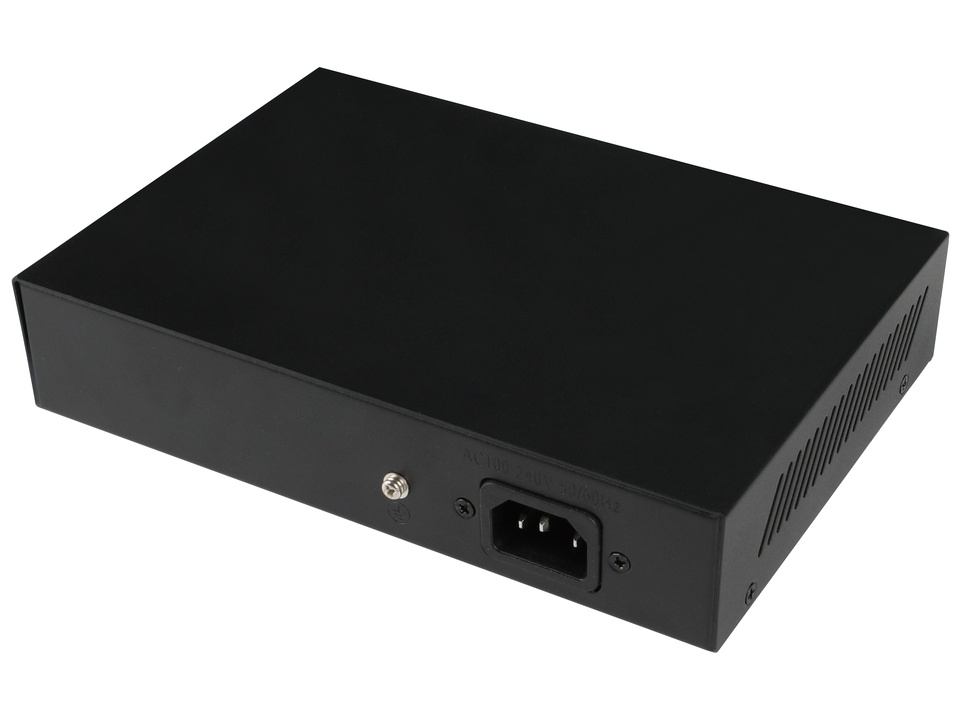

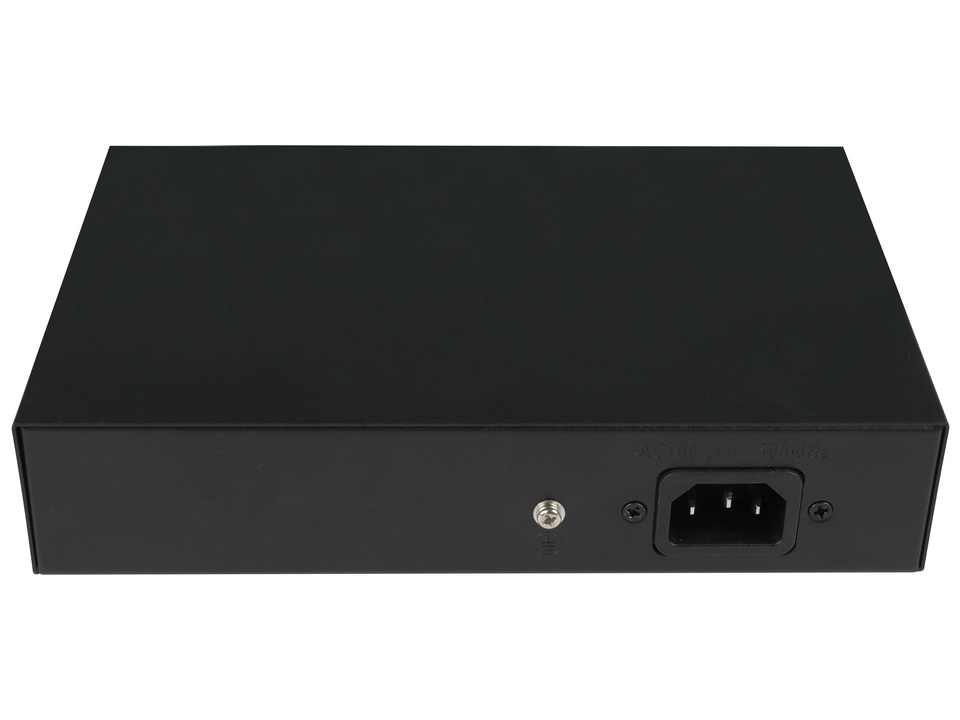

| Power Supply | Build-in power adaptor AC100~240V 50-60Hz, 65W |
| Operation TEMP/ Humidity | -20~+55°C:5%~90% RH non condensing |
| Storage TEMP / Humidity | -40~+75°C;5%~95% RH non condensing |
| Dimension | $195^{*}130^{*}40mm$ |
| Net/Gross Weight | $<0.8~kg/<1.2~kg$ |
| Installation Method | desktop type, wall mounted |
| Protection | IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-5(Lightning protection/Surge): Power:CM±4kV/DM±2kV; Port: ±4kV |
| Protection level | IP30 |
| Certification | CCC;CE mark, commercial;CE/LVD EN60950; FCC Part 15 Class B; RoHS |
| Warranty | 2 years, lifetime maintenance. |
