PoE Switch
NV-SWD64P-E

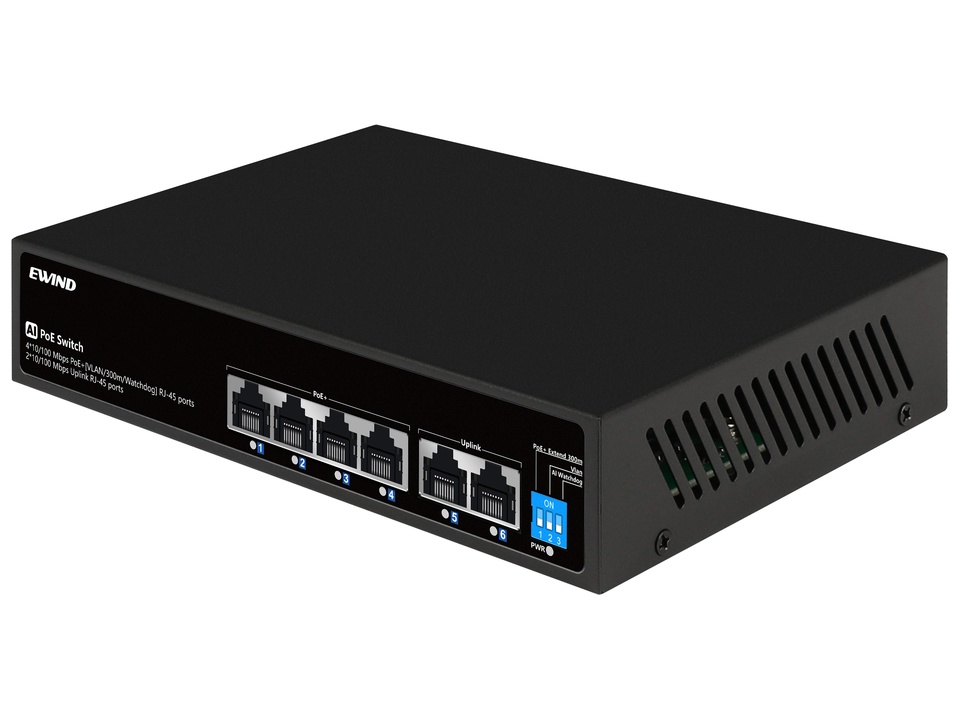

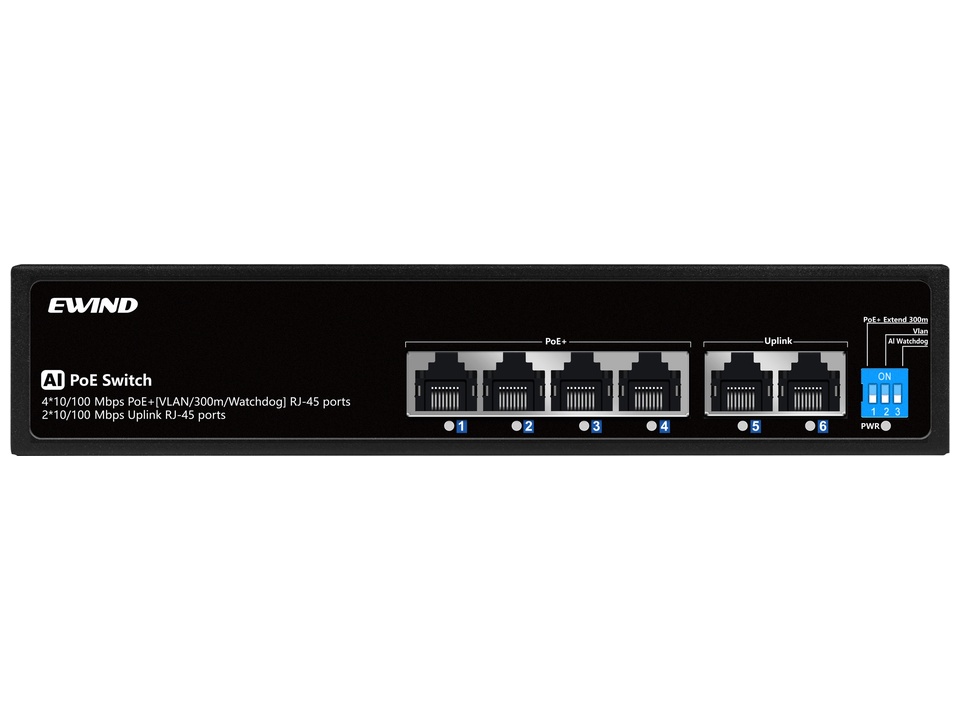

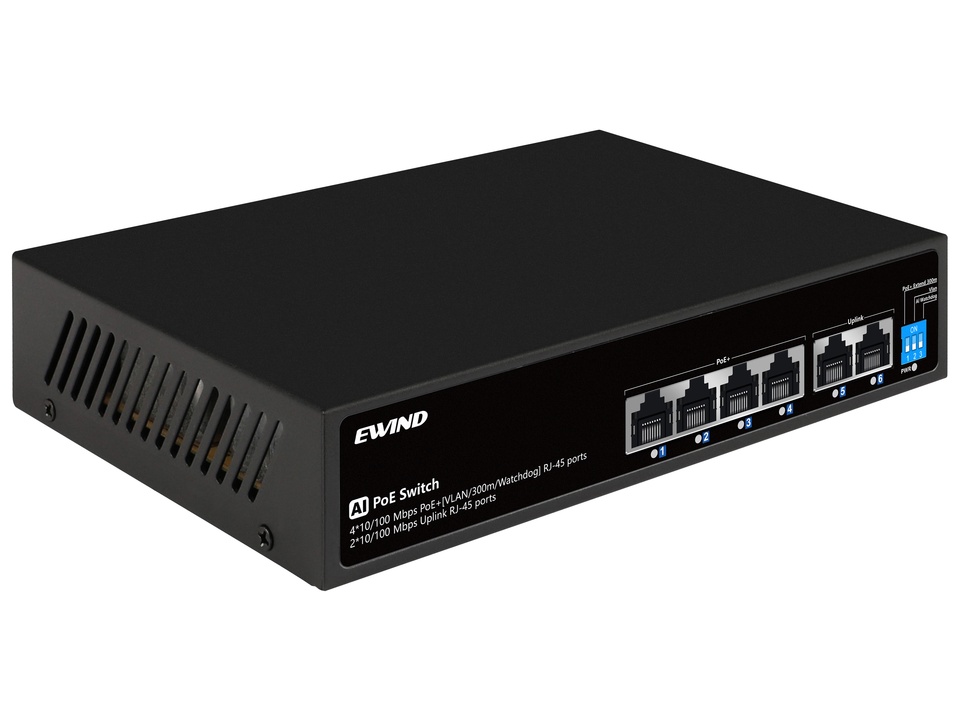

Unmanaged PoE Switch with Extend Mode (4x PoE 100M + 2x Uplink 100M) – NV-SWD64P-E Key Features: • 4 PoE access ports (10/100 Mbps) and 2 fast Uplink ports (10/100 Mbps). • AI Extend function, boosting the maximum power delivery range from 100 meters up to 300 meters. • Built-in hardware VLAN – full port isolation protecting the network from broadcast storms. • AI Watchdog mode (self-healing network function that automatically reboots connected cameras). The NV-SWD64P-E is a smart, highly intuitive (Plug & Play) access switch explicitly designed for reliable video surveillance (CCTV) systems. Its strategic advantage lies in the AI mode switch located on the front panel. Once the Extend function is activated, the physical 100-meter limitation of copper cable is shattered, allowing the device to deliver power to cameras up to 300 meters away. Furthermore, the AI Watchdog algorithm continuously diagnoses transmission quality—if it detects an unresponsive subordinate device, it automatically cycles the power on that specific port, effectively rebooting the hardware and eliminating costly service calls.
Key Features
PoE Port
4x 100Mbps (PoE)
PoE Standard
802.3af/at
PoE Budget
60W
RJ45 Uplink Port
2x 100Mbps
Bandwidth
1.2 Gbps
Management
Unmanaged
Power Supply
100-240V AC
Power Consumption
< 3W (bez PoE)
Features
Plug & Play
Enclosure
Desktop
Technical Specifications
| Model | NV-SWD64P-E |
| PoE Ports | 4*10/100Mbps |
| Uplink Ports | 2*10/100Mbps RJ45 Ports |
| Switching Capacity | 1.2Gbps |
| Forwarding Rate | 0.8928Mpps |
| MAC Address Table | 2K |
| Buffer Memory | 768K |
| Power Supply | 60W |
| Power Consumption | Standby: $<3W$ Full load: $<60W$ |
| LED Indicator | Power indicator: PWR (Green); Network indicator: 1-4(Link/Act)/(Green): $5-6(Link/Act)/$(Green). |
| Dimension | $195^{*}130^{*}40mm$ |
| Net/Gross Weight | $<0.75kg/<1kg$ |
| Ethernet Port Feature | 10/100Base-T(X) automatic detection, full/half Duplex MDI/MDI-X adaptive. |
| Network Protocol | IEEE802.3 10BASE-T; IEEE802.31 10Base-T; IEEE802.3u 100Base-TX IEEE802.3x. |
| EVD Function | With the Dial code switch: E:Al Extend 300meters transmission and auto speed change of single port (limit 10Mbps), other ports maintain 100M within 100 meters; V:Turn on, Each Port support each port Isolation & VLAN, D:Turn on, Each Port support Al-PoE Network self-healing mode (PoE Watchdog function), Automatic solve the camera problem &reduce after-sale. |
| PoE standard | PoE Ports support @IEEE802.3af/at. |
| Fiber Port Feature | Gigabit SFP Port (Fiber module is not included, need to order separately, module options include single/multi-mode, single/dual fiber, LC) |
| Forwarding Mode | Store and Forward |
| Twisted Pair Transmission | 10BASE-T: Cat5 UTP ( $(\le300$ meter) 100BASE-TX: Cat5 or later UTP (≤100 meter) 1000BASE-T: Cat5 or later UTP (≤100 meter) |
| Power Supply Pin | Default $1/2(+)$ $3/6(-)$ |

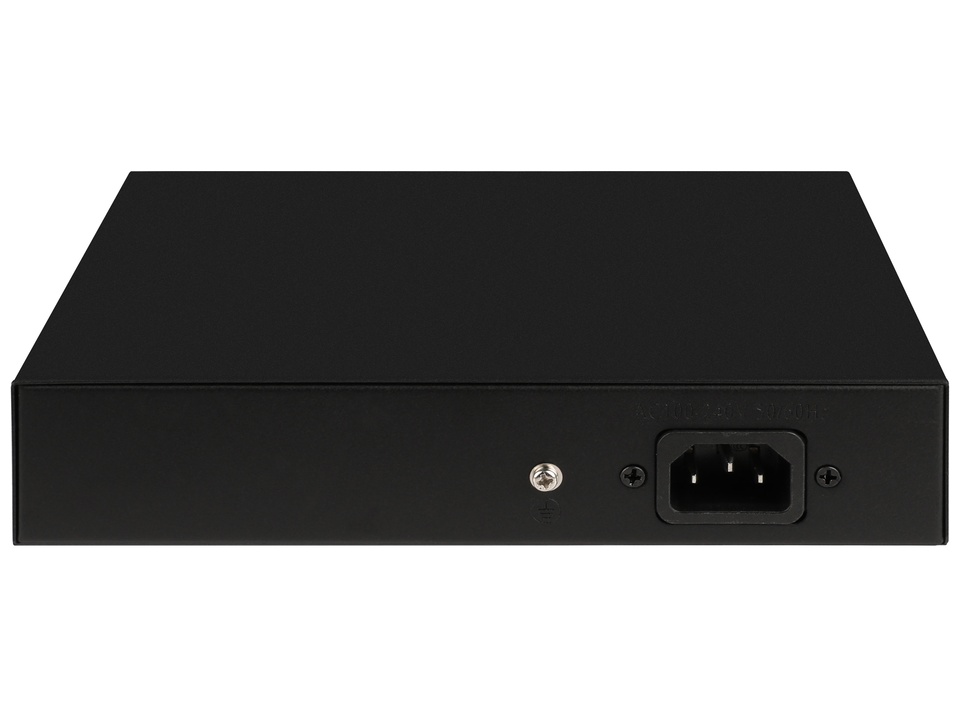

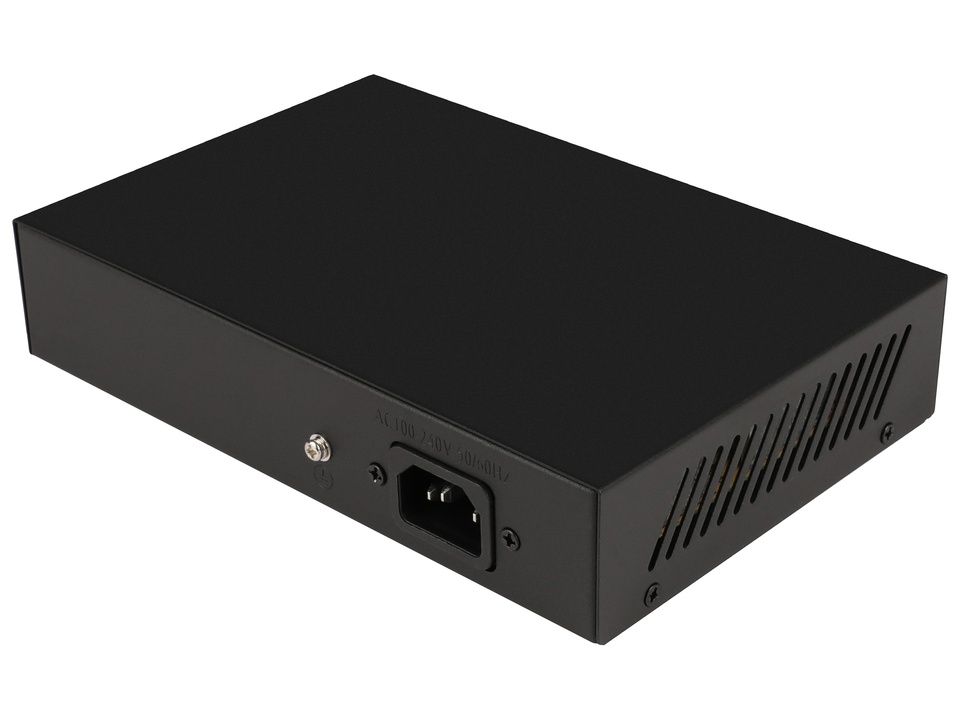

| Power Supply | Build-in power supply AC100-240V 50-60Hz. |
| Operation TEMP/ Humidity | $-20-+55^{\circ}C$ 5%~90% RH non condensing |
| Storage TEMP/ Humidity | $-40-+75^{\circ}C;$ 5%-95% RH non condensing |
| Installation Method | desktop type, wall mounted; |
| Protection | IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge; IEC61000-4-5(Lightning protection/Surge): Power:CM±4kV/DM+2kV; Port: ±4kV. |
| Protection Level | IP30 |
| Certification | CCC,CE mark.commercial.CE/LVD EN60950,FCC Part 15 Class B ROHS. |
| Warranty | 1 years,lifetime maintenance. |
